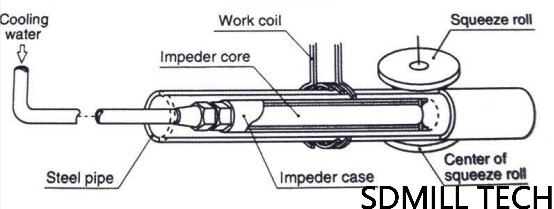

High Frequency Induction welding is the common process for steel tube manufacturing. Ferrite rod core plays a very crucial part in increasing the efficiency of welding process. Major requirement of ferrite cores are low power loss and close control of dimensions.

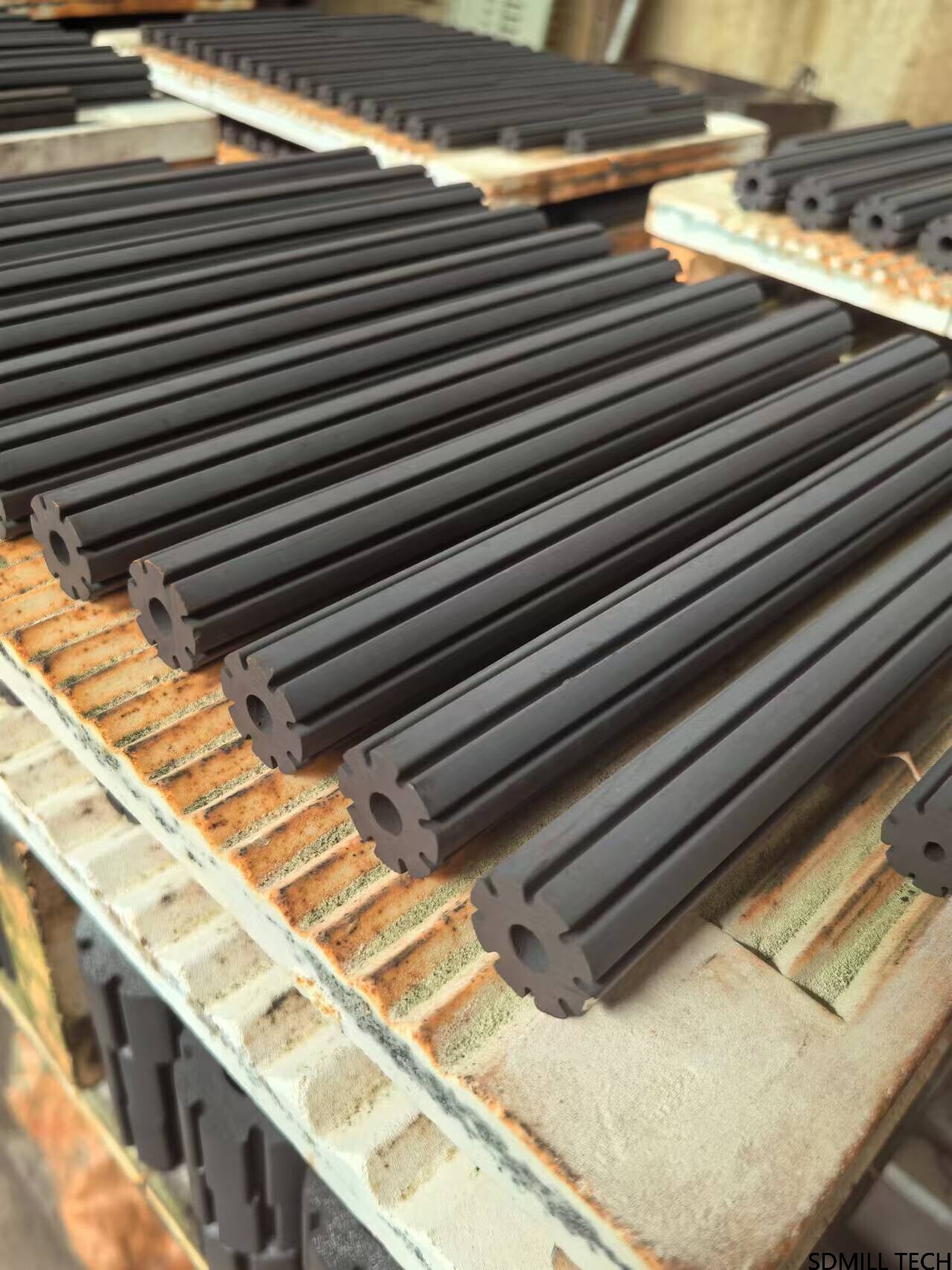

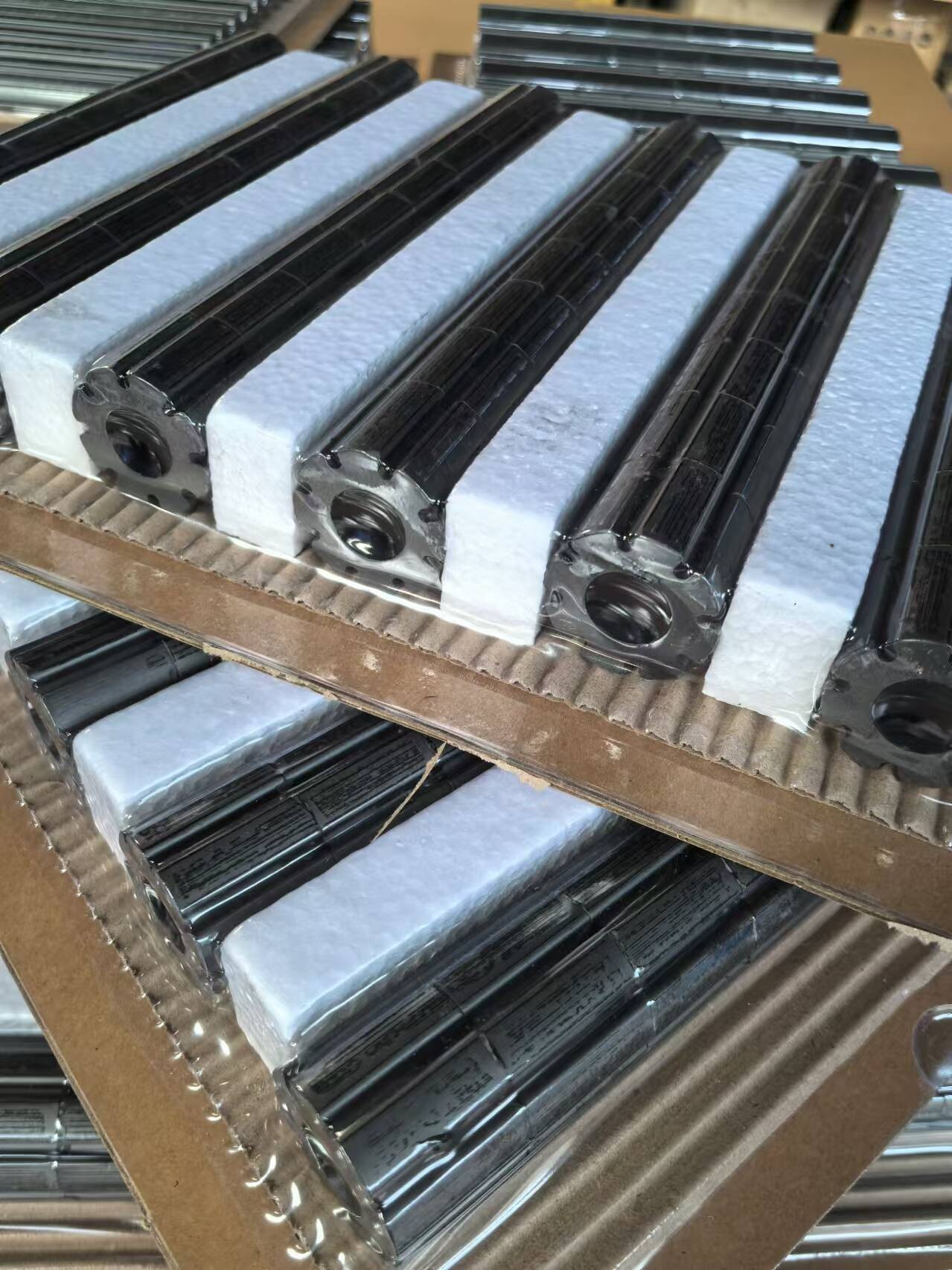

Impeder rods are manufactured using soft ferrites by extrusion and sintering process. Magnetic Product Division's impeder rods are manufactured under controlled processes to achieve the tight dimensional control and highest magnetic properties, which would ensure the best performance of steel tube welding.

Ferrite Grades:

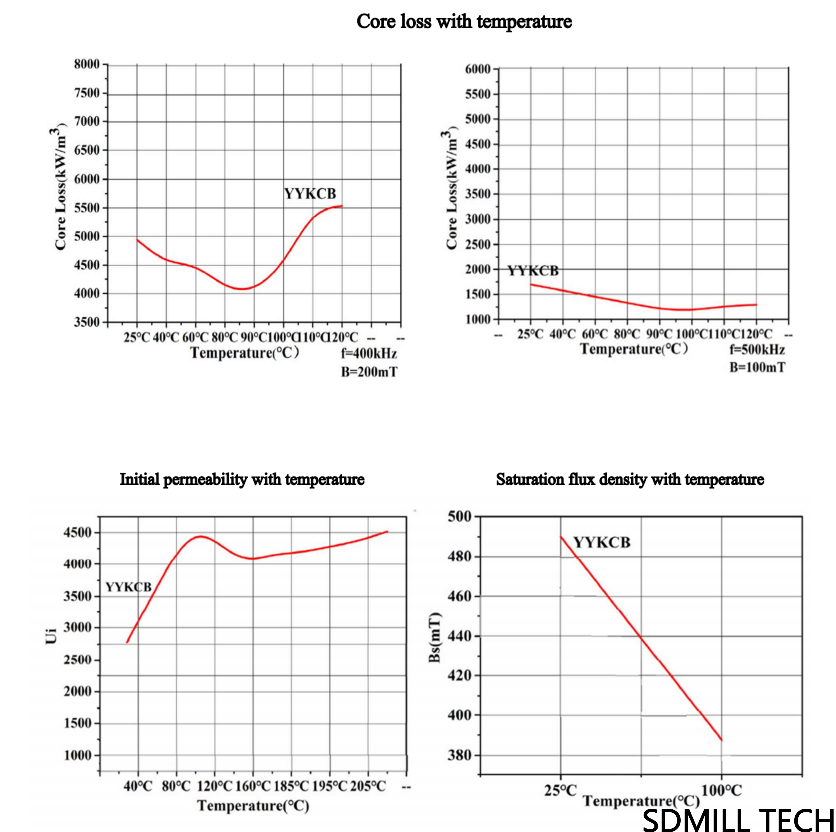

Our ferrite rod cores for induction welding with low power loss material grade provide better magnetic such as lower power loss, higher saturation flux density (Bs) as well as better Bs stability at higher temperatures.
